RS-10 'Iron'
Intelligent electric heater for forklift:

Commercial informations:
commerciale@xonelectronics.it

Technical informations:
tecnico@xonelectronics.it

Webmaster:
web@xonelectronics.it

This site uses only technical cookies which, for italian laws, do not need explicit user acceptance (GU 126 3 june 2014)


(C) XON Electronics
Copying material from this site is forbidden.

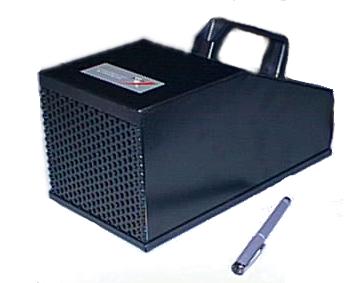

Foto

Intelligent, safe, transportable electric heater. Suitable for any cabined electric forklift.

Two version available, at 48 or 80 volts, and power of about 1000W; microprocessor controlled, and several safety precautions.




Description
Applications
Details
Technical data
Download

Product description

The RS-10 is a heater especially designed for electric forklifts. The highlights of this product are a great heating power combined with small external dimensions, and good ease of connection. The power connector gives the ability to easily detach and remove the device, and the upper handle gives a comfortable transportation. It can, however, be fixed using the provided fixing holes.


Typical applications

While intended mainly for cabined forklifts, it can be used anywhere an electric heater with safety features is needed.

Using the RS-10 is very simple: a single pushbutton turns on and off the device, and a light indicator shows whether the power is on or off. The microprocessor intelligent controller turns automatically off the heater when the forklifts is not used for several minutes, avoiding this way to discharge completely the batteries when the heater is forgot in the ON state.

Product details

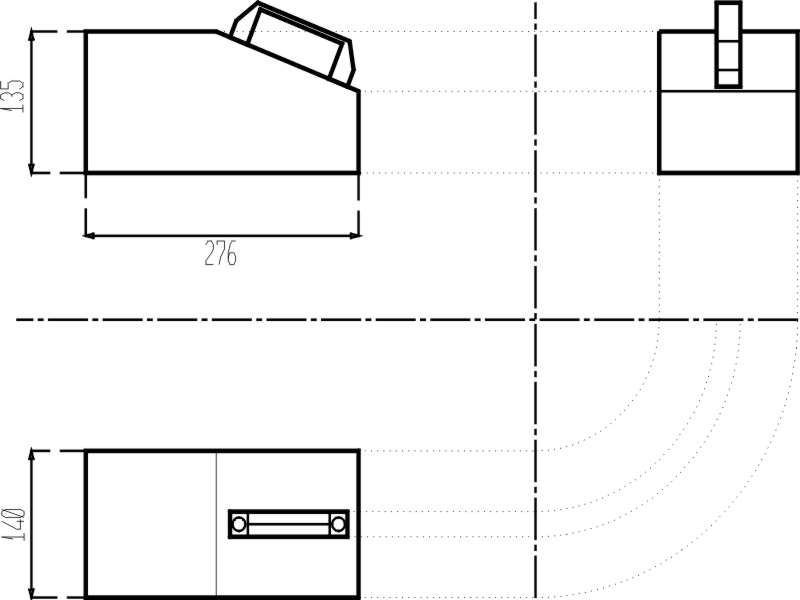

(Click to enlarge). This drawing shows the dimensions of the object.

Tecnical data

Power supply: two versions: at 48 or 80 volts
Power consumption: 1000 W
Air flow: 3 mc/min circa
Fan type: hearing balls mounted, long duration
Case: epossidic powder black painted metal

Power protection fuse
Safety thermostate
Electronic circuit to activate emergency in case of fan failure
Electronic circuit to shut off automatically the heater
Power connector for easy connection/removal
Light indicator and acoustic beeper
On/Off push button
Transportation handle
Rubber feet
Custom case for quantity orders
